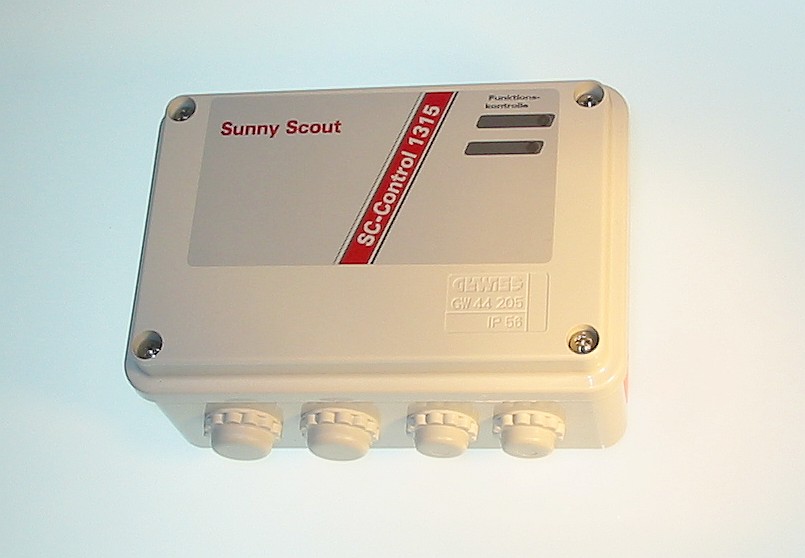

> Solar Controller 1315 + 2 sensors
Solar Controller 1315 + 2 sensors View larger

Solar Controller 1315 + 2 sensors

1315

New product

Sollar controller in IP65 protection class housing

More details

In stock

55,00 € VAT included

Shipping excluded

0.5 kg
Delivery: 3-7 days

Data sheet

DisplayLED
Outputs1
Inputs (sensors)2
Pump blockage protectionYes

More info

The 1315 controllers is an universal and robust differential temperature controller for solar, heating and air conditioning systems. The 1315 controls solar power systems equipped with one collector and one storage tank.

The controller is equipped with an adjustable temperature difference (5 ... 25K) and a an adjustable temperature for maximum temperature (20°C ...90°C).

Features:
- Compact
- LED indicators
- Easy to install
- High protection class
- Monitoring of the basic functions
- Adjustable max. temperature and hysteresis

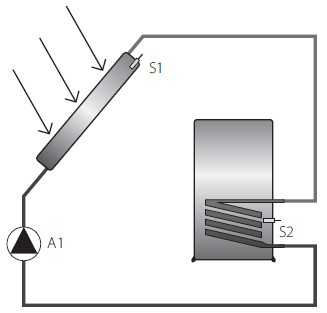

Diagram:









What is in the box:
Controller
Manual (German)
1 collector sensor, 1 storage tank sensor


The device is made in Germany

Specifications:

Housing
Material100% recyclable ABS housing for wall mount-
ing
Dimensions L x W x D in mm, weight130x90x55 mm; 400 g
Protection classIP54 according to DIN 40050, EN 60529
Electrical specifications
Operating voltageAC 230 Volt, 50 Hz -10...+15%
Fuse protectionFine-wire fuse 5 x 20mm, 2A/T
(2 amperes, delayed-action fuse)
Max. cable cross-section
230V connections		0.75 mm² fine-wire/single wire
Radio interference levelN according to VDE 0875
Temperature sensor /
measuring range		PT1000, 1 kOhm at 0°C
-30°C .. +250°C
Testing voltage 4 kV 1 min according to EN 60730/DIN, VDE
0631, IEC 60664/IEC
Output Voltage
Power - switching output		230V~
1A / approx. 230VAfor cos φ = 0,7-1,0
Miscellaneous
Operating temperature0 ... + 50°C
Storage temperature-10 ... + 65°C
  • Reviews (3)

    • Send us your question


    Be the first to ask a question about this product!

    Question about the product

    * Required fields
    Send

    The question has been correctly sent

    Rated 5.00 on the scale 1 - 5 based on 3 customer reviews

    Sehr zufrieden

    Einfach zu installieren, wasserdicht, funktioniert einwandfrei

    Was this comment useful to you? Yes No
    Report abuse
    Verified purchase

    Empfehlung

    Fachkundige Antwort auf Mailanfrage, Blitzversand, günstiger Preis. Gegenüber dem Angebot des Installateurs, der meine defekte Brauchwassererwärmung reparieren wollte, habe ich 400 Euro gespart!!

    Was this comment useful to you? Yes No
    Report abuse
    Verified purchase

    Ich kann den Shop nur empfehlen.

    Der Shop ist vorbildlich und ich bekam auf meine eMail Anfrage sofort Auskunft.
    Die Lieferung wurde sehr schnell erledigt und die Steuerung ist für jeden Schwimmbad Besitzer eine sehr günstige Lösung, um ein Motorventil anzusteuern für den Solar betrieb.

    Ich kann den Shop nur empfehlen.

    LG Dieter

    Was this comment useful to you? Yes No
    Report abuse
    Write your review!

    Download

    Anleitung 1315

    Download (61.41k)
