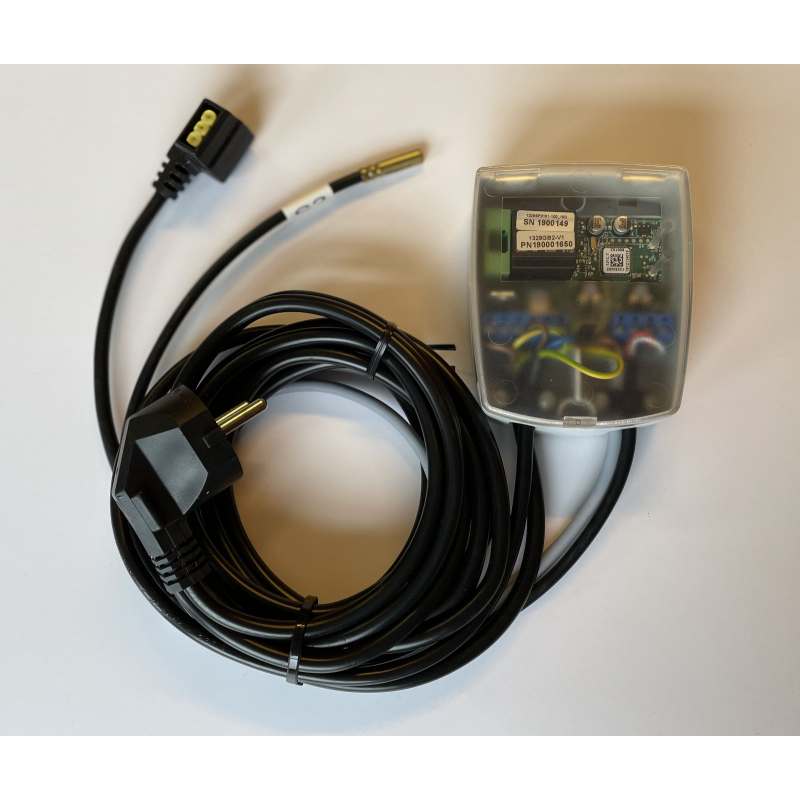

Solar controller PICO 200 + 2 Sensors View larger

Solar controller PICO 200 + 2 Sensors

1328-20

New product

Microprocessor controlled solar controller

More details

In stock

Warning: Last items in stock!

60,00 € VAT included

1 kg
Delivery: 3-7 days

Data sheet

DisplayLED
Outputs1
Inputs (sensors)2
Frost protectionYes
Pump blockage protectionYes

More info


The SOLAREG PICO 200 controllers are microprocessor-controlled units for controlling the functions of solar thermal systems. The SOLAREG PICO 200 controls solar power systems equipped with one collector and one storage tank.

Features:
- Compact
- LED indicators
- Easy to install
- High protection class
- Various protective functions, such as system protection and pump blockage protection
- Monitoring of the basic functions
- Adjustable max. temperature and switch on difference

Diagram



The controller compares the temperatures of the various measuring points and optimally charges the storage tank. If the collector temperature exceeds the storage
tank temperature + 7K, the solar circuit pump is switched on. The pump goes off when the collector temperature falls bellow the storage tank temperature +3K. Monitoring and protection functions ensure safe operation.

What is in the box:
Controller
Manual (German and English)
1 collector sensor, 1 storage tank sensor


The device is made in Germany

Specifications:

Housing
Material100% recyclable ABS housing for wall mount-
ing
Dimensions L x W x D in mm, weight95 x 75 x 50; 130 g
Protection classIP20 according to DIN 40050, EN 60529
Electrical specifications
Operating voltageAC 230 Volt, 50 Hz -10...+15%
Fuse protectionFine-wire fuse 5 x 20mm, 2A/T
(2 amperes, delayed-action fuse)
Max. cable cross-section
230V connections
0.75 mm² fine-wire/single wire
Radio interference levelN according to VDE 0875
Temperature sensor /
measuring range
PT1000, 1 kOhm at 0°C
-30°C .. +250°C
Testing voltage 4 kV 1 min according to EN 60730/DIN, VDE
0631, IEC 60664/IEC
Output Voltage
Power - switching output
230V~
1A / approx. 230VAfor cos φ = 0,7-1,0
Miscellaneous
Operating temperature0 ... + 50°C
Storage temperature-10 ... + 65°C
